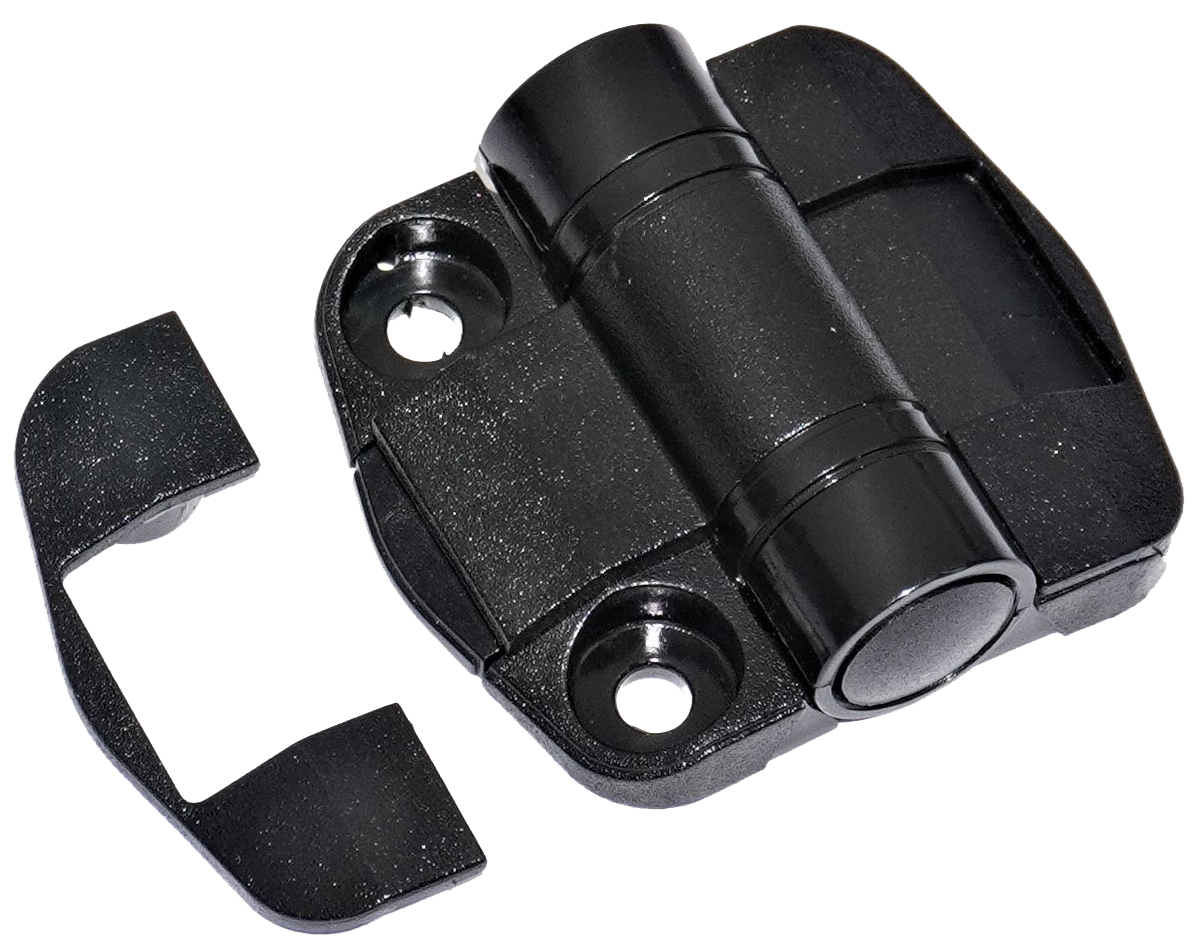

Detent Plastic Hinge - HP Series (High Performance)

A new addition to our HP Series, Detent plastic hinges are sprung loaded and operate with a 'snap' action, which holds the door open at 150°, allowing hands free access to the cabinet / toolbox / enclosure.

Overview:

Size: L57mm x W52mm
150º Opening angle
Black thermoplastic
Sprung loaded
ø17.8mm Zinc plated steel pin
Robust design
4 x ø5.0mm Countersunk fixing holes
2 x Screw cover caps
Sold singly

Max Static Load

Radial Load: 660N

Axial Load: 800N

Click the part number for further information: HNVN195/57BLK
